HYPERION R - Low Temperature Black Body
Blackbody Calibrator, HYPERION R - Low Temperature Blackbody Source

Alternative Views:

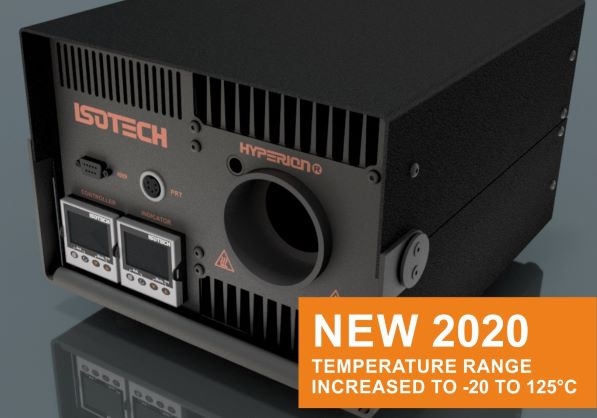

Temperature Range of -20°C to 125°C (257°F)
Can Expand to use Fixed Point Cells
  • Emissivity: 0.995
  • Stability: ±0.1°C
  • Ideal for Raytek ST, MX & CI Series thermometers
  • 50mm Cavity Diameter
  • Low Temperature Radiation Pyrometer Primary Source
Base Price: $10,744.00


Product Code: 982-HYPERION-R

   Product Description    Specifications

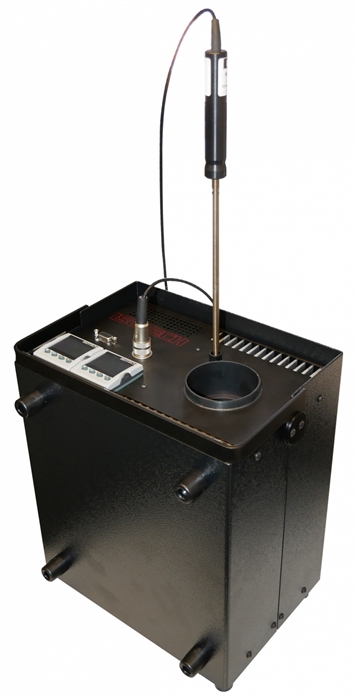

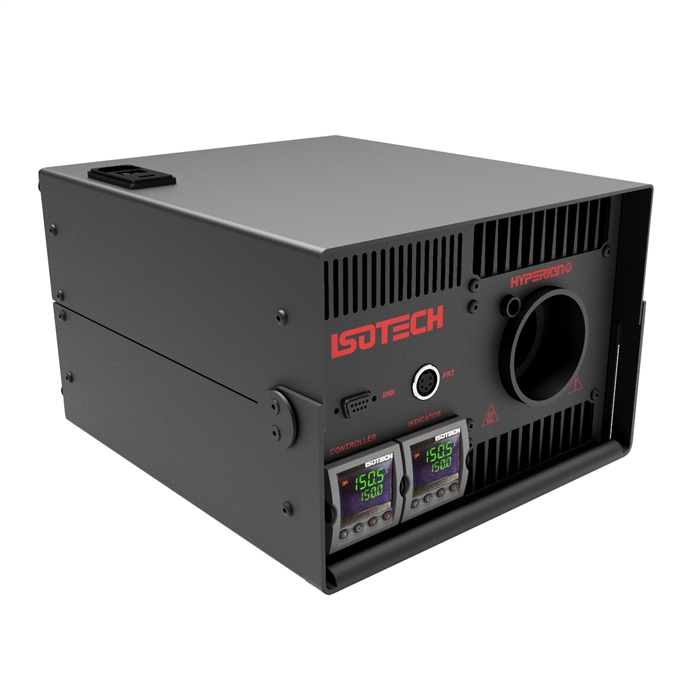

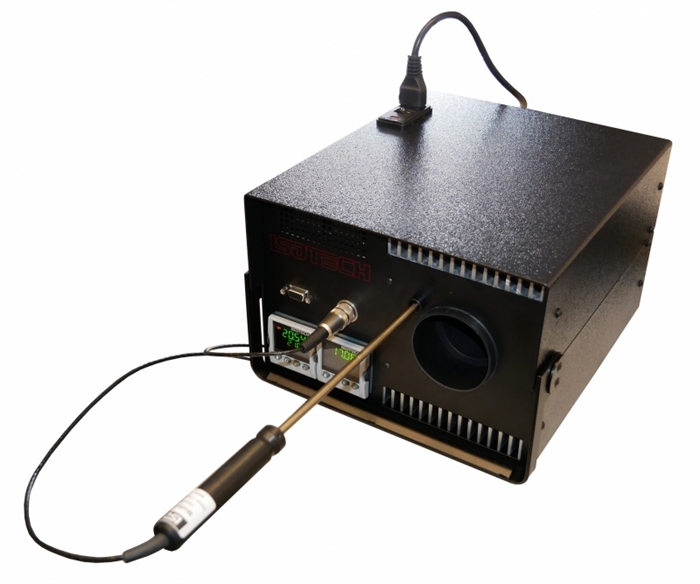

The Hyperion R Portable Black Body Calibration Source allows for the calibration of non-contact infrared thermometers over the temperature range -20°C to 80°C

It is suitable for use as a primary radiation source for infrared thermometers from sub zero to 80°C

Laboratory performance and low uncertainty calibrations are ensured by the combination of high emissivity and excellent temperature uniformity.

The digital temperature controller allows the block temperature to be set to any value from -20°C

Traceability of the radiance temperature is established by a separate, built-in temperature indicator, and included platinum resistance thermometer.

A three-point traceable calibration certificate is included with this infrared blackbody source. UKAS calibration of the resistance thermometer is available, as is radiometric calibration.

Uniformity of the block is ensured by using distributed thermoelectric heat pumps with the benefit of solid state, vibration-free cooling.
